Modular Transfer Point Kits

Transfer Point Kits include modular load zone, settling zone, and stilling zone configurations, providing easier installation and a wider variety of chute options while facilitating future upgrades. The kit simplifies the installation process, reducing the amount of labor required for assembly and allowing the system to be pre-built prior to installation for reduced system downtime. The result is faster installation with less labor and shorter shutdowns, increasing the return on investment (ROI).

Delivered in a single crate with every component for assembly included
Able to be assembled prior to the shutdown and installation, saving time and money
Fully modular making future changes easy without expensive construction projects
Each kit is either ordered as a loading zone, settling zone, or stilling zone. The width and length of the kit are determined by the receiving belt’s width and speed and the dust characteristics of the material being transferred. Dusty applications may require a longer settling zone.

Conveniently listed under a single part number, the kits include:

Skirt seal is sold separately as a single piece that runs the entire length of the loading and settling zones.

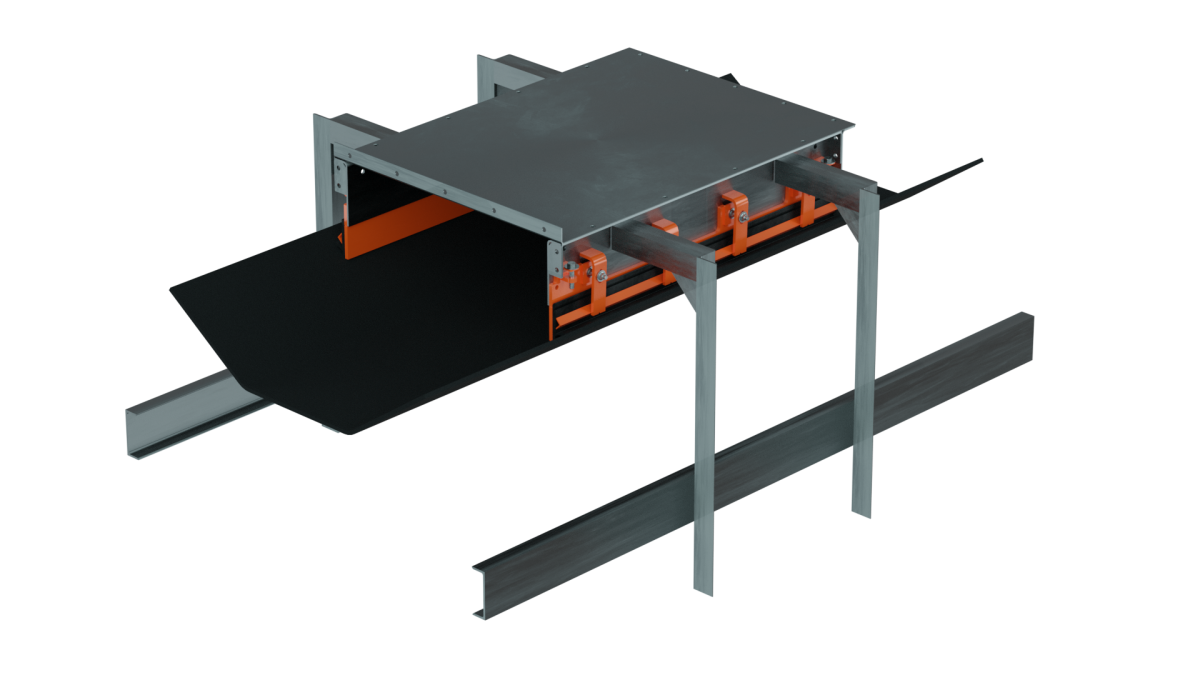

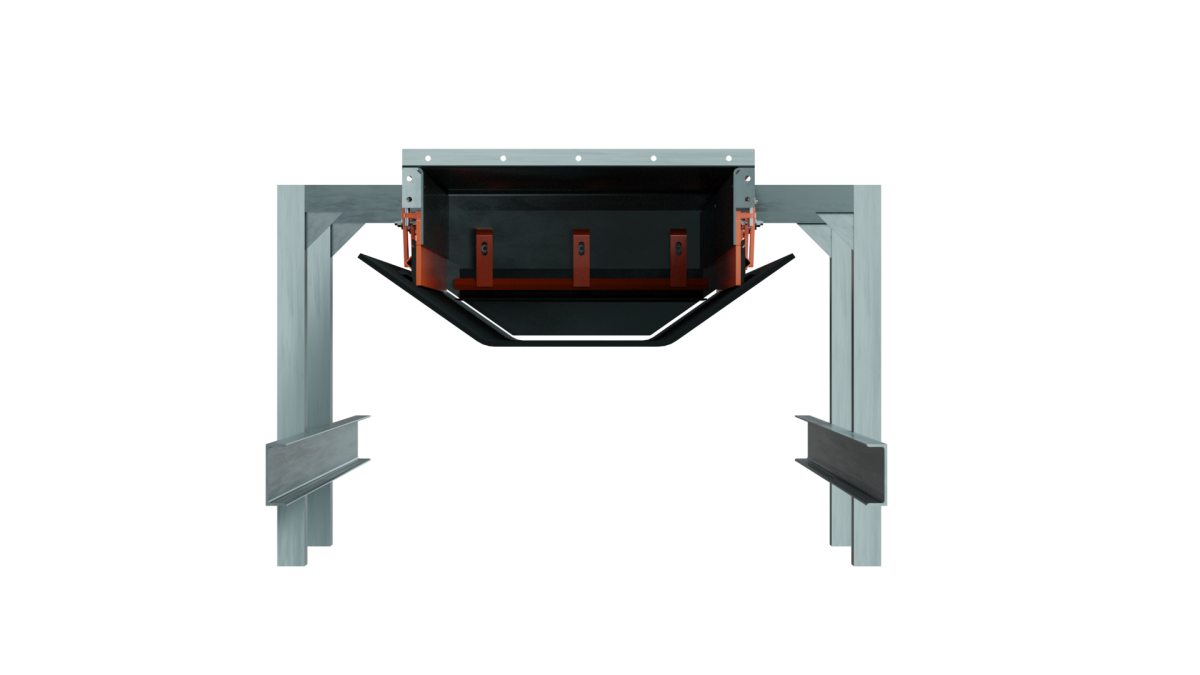

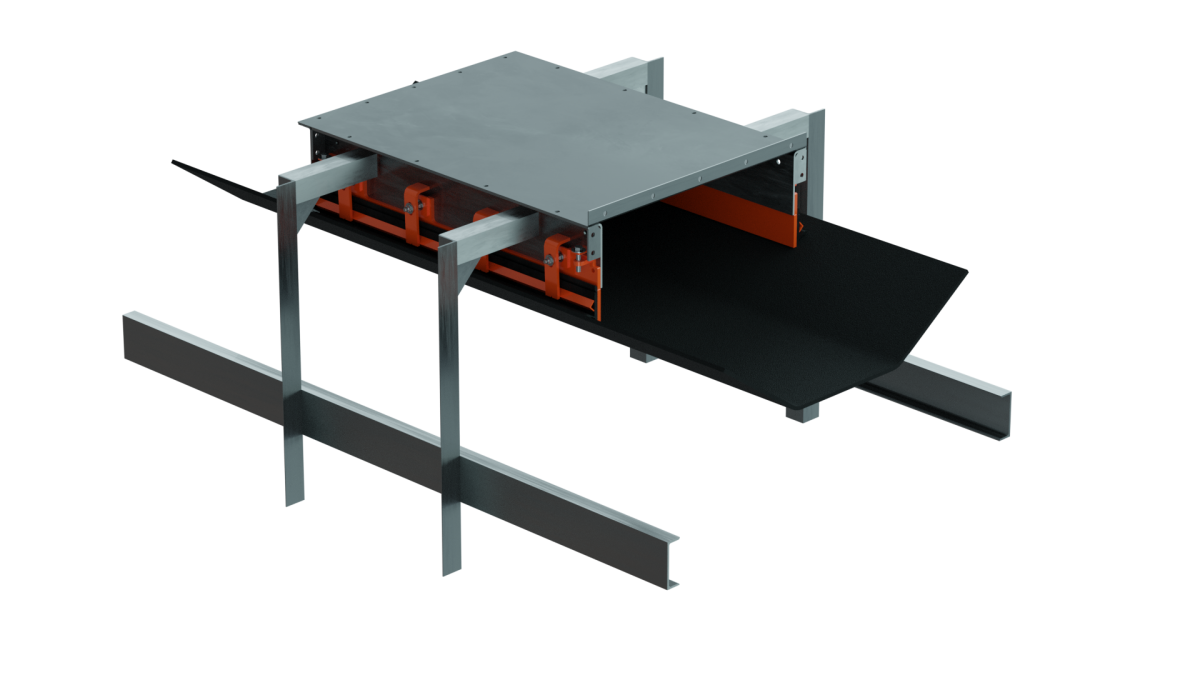

Loading Zone

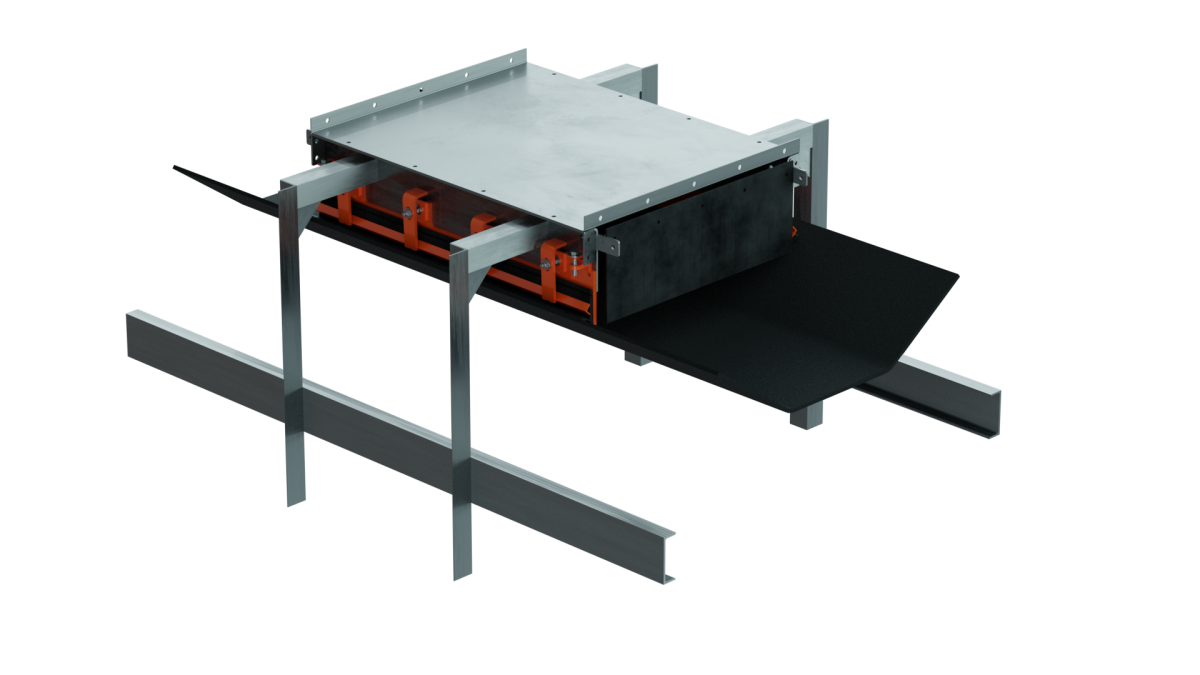

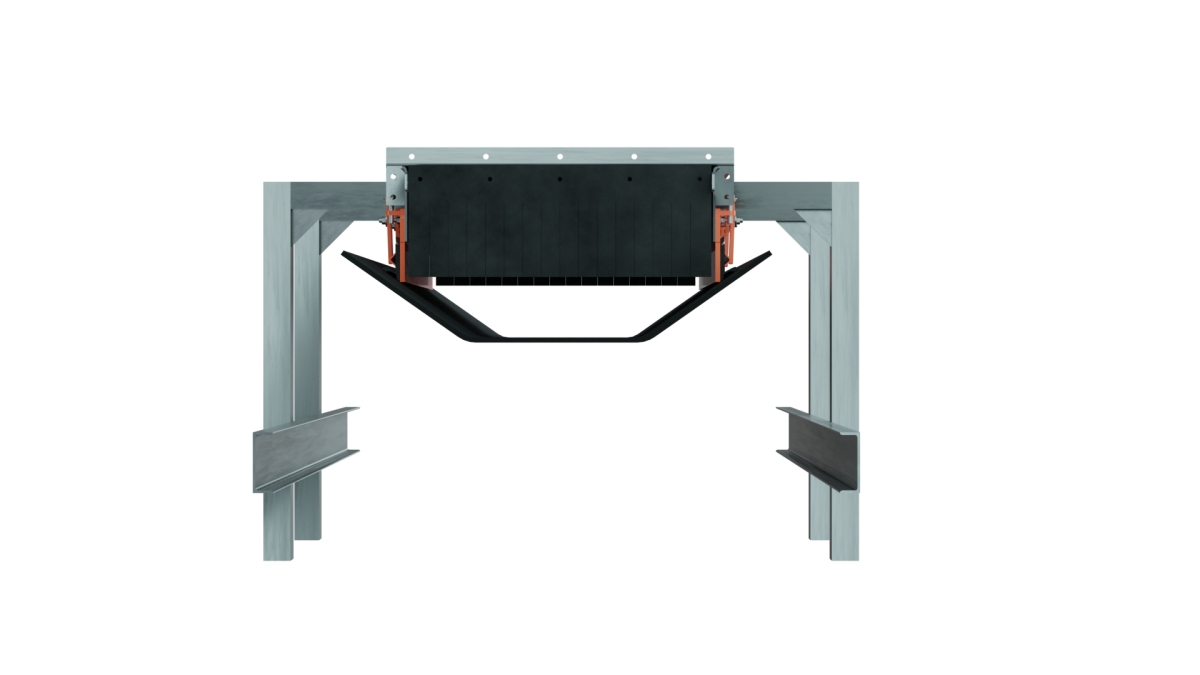

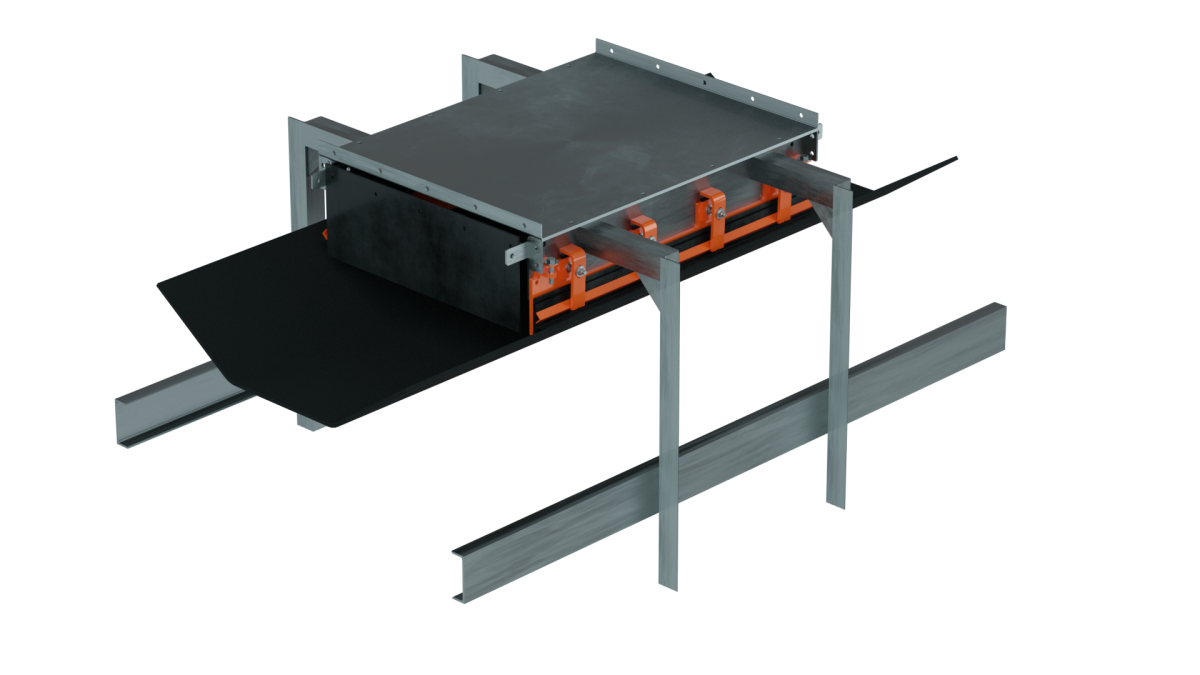

Settling Zone

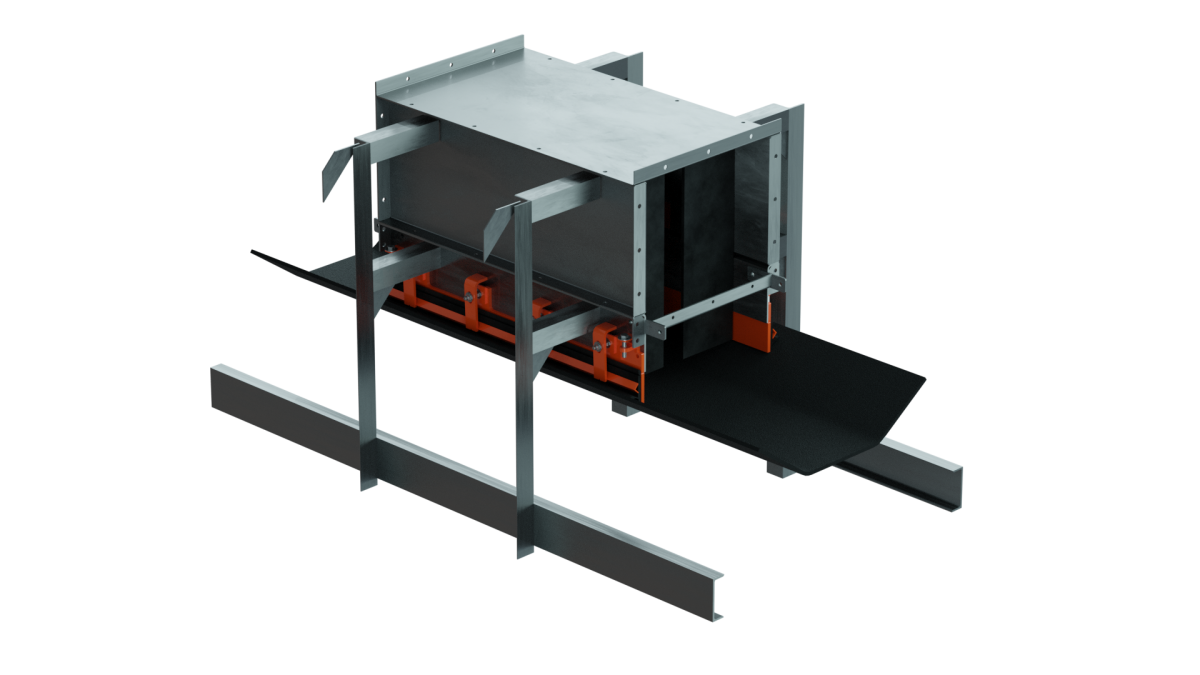

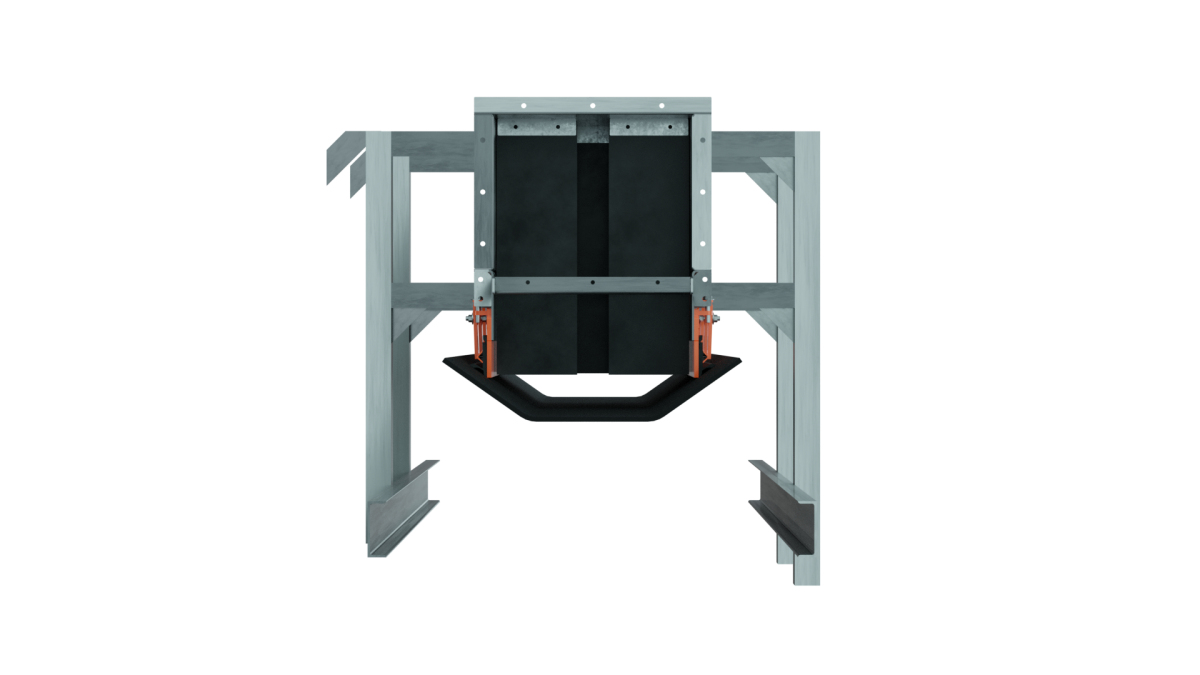

Stilling Zone
